| FIBRA OPTICA ( Monomodo & Multimodo) |
| |
|
|

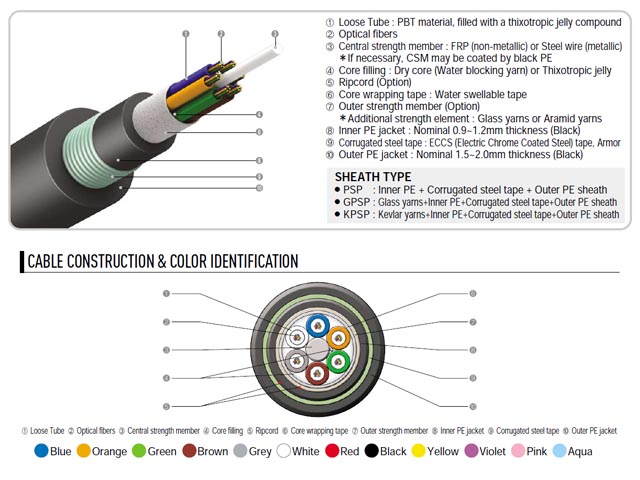

| CANALIZADOS SP |
|

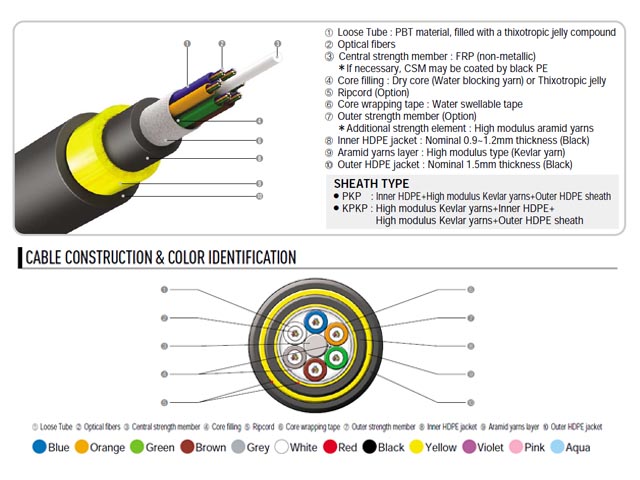

AÉREO ADSS |
| |
FEATURES: |
|
|
FEATURES: |
|
-
Different fiber types available
-
Double jacket, Single armor, UV stabilized, Water blocked, Rodent resistance, Anti-ballistic construction
-
Excellent mechanical and environmental performance
-
Medium weight and flexibility
-
High tensile strength available
-
High fiber counts (up to 504 fibers)
|
|
|
-
Different fiber types available
- All dielectric Double jacket, UV stabilized, water blocked
- Excellent mechanical and environmental performance
- Low weight and flexibility
- High modulus aramid yarns, long term reliability
- High fiber counts (up to 288 fibers)
|
| APPLICATIONS: |
|
APPLICATIONS: |
- Outdoor duct, birual applications
- Outdoor aerial lashing applications
- High capacity
- Long haul communication system
- Subscriber & Local Area Network
- Voice, data, video & imaging system
|
|
- Outdoor aerial applications
- High voltage transmission system (< 24 kV)
- Railway & Telecommunication pole route
- Voice, data, video & imaging system
|
| |
|
|
|
|

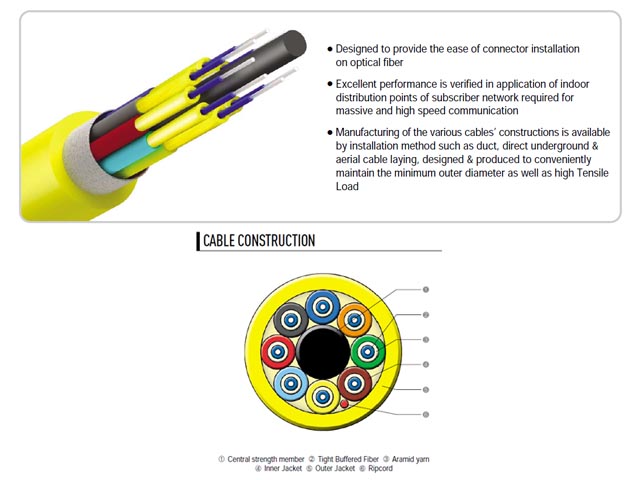

| FTTH |
|

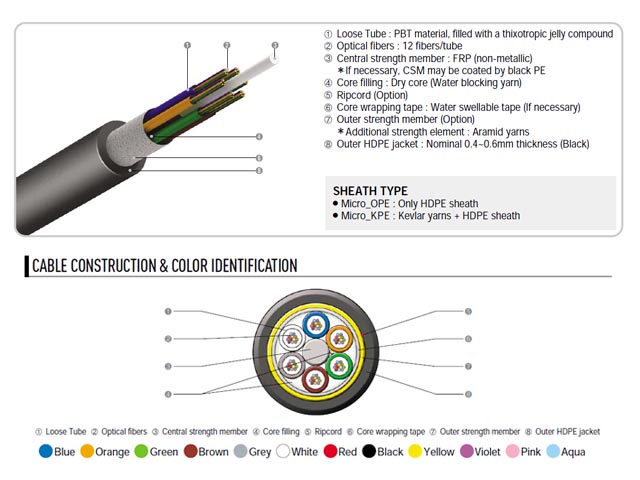

MICRO |
| |
FEATURES: |
|
|
FEATURES: |
 |
- Single-mode or Multimode optical fiber used
- Excellent mechanical & environmental characteristics
- Ease of optical connector installation & optical fiber connection
- Coating materials: Flame retardant PVC, PU, LSZH & etc.
- Operating Temperature Range: -40-70°C
|
|
|
- Different fiber types available
- All dielectric single jacket, UV stabilized, water blocked
- Excellent mechanical and environmental performance
- Light weight and flexibility
- High fiber counts (up to 144 fibers)
|
| APPLICATIONS: |
|
APPLICATIONS: |
- Large subscriber system
- Intermediate distance transmission system
- Large LAN system
|
|
- Micro duct applications
- High capacity
- Subscriber & Local Area Network
- Voice, data, video & imaging system
|
| |
|
|
|
|

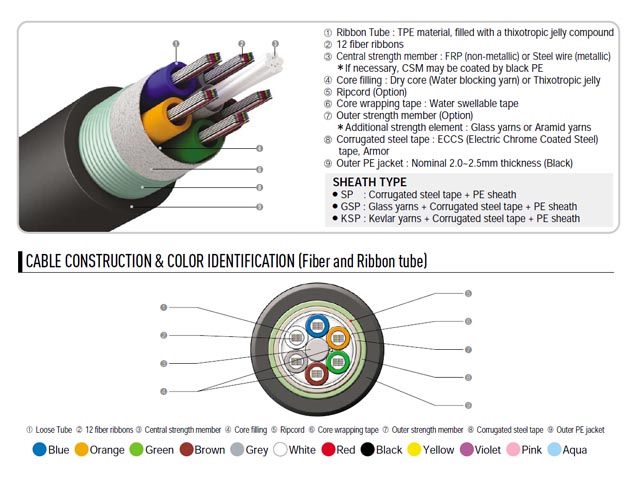

| RIBBON |
|
|
| |
FEATURES: |
|
|
|
|
- Different fiber types available
- Single jacket, single armor, UV stabilized, water blocked, rodent resistance
- Excellent mechanical and environmental performance
- Medium weight and flexibility
- High tensile strength available
- High fiber counts (up to 432 fibers)
|
|
|
|
| APPLICATIONS: |
|
|
- Outdoor duct, burial applications
- High capacity
- Long haul communication system
- Subscriber & Local Area Network
- Voice, data, video & imaging system
|
|
|
| |
|
|
|
|
