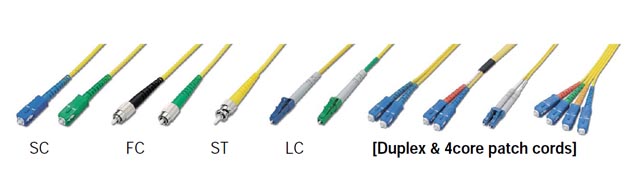

| PIGTAIL & PATCH CORD |
| |
|
|
 |
| |
| Specificacions: |
|
Features: |
| Characteristics |
Values |
|
- Comply with: JIS, IEC, Bellcore
|
| Structure |
Satisfied Telcordia GR-326-CORE |
|
- High stable mating and de-mating characteristics
|
| Fiber Type |
SM(9/125),MM(50/125,62.5/125) |
|
- Low insertion loss and high return loss
|
| Insertion Loss |
< 0.2dB (against master connector) |
|
- Designed for variable cable
|
| |
SPC |
> 40dB |
|
|
| Return Loss |
UPC |
>55dB |
|
- Various connector and optical performance combinations
|
| |
APC |
>65dB |
|
|
| Mating Durability |
< 0.2dB (500times) |
|
|
| Operating Temperature Stability |
< 0.3dB (-40°C-+85°C) |
|
|
