OTDR

M700 Series OTDRs

  Features:


  • Integrated OPM and VFL (650 nm)
  • Full Auto, Expert, and Real-Time OTDR test modes
  • Pass/Fail Event and Link Thresholds settings
  • 6.5-inch transflective (indoor/outdoor) touch screen display
  • Tool-free, switchable test port adapters
  • Rechargeable Li-Ion battery (> 8 hours) or AC power
  • USB host and function ports
  • Bellcore (GR-196) .SOR file format
  • Internal (1000s test results) and USB storage
  • Windows® compatible software



  Applications:

  • Tier 1 and 2 testing of premise networks
  • Metro, FTTx, and Service Provider networks testing
  • Interoffice networks
  • Loss or power measurement storage
  • Fault location with integrated VFL
  • Splice verification
  • Network documentation including Pass/Fail event analysis

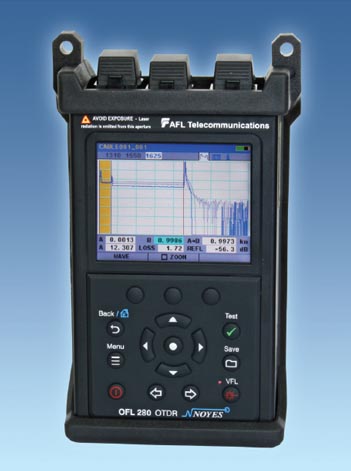

OFL280 Handheld FTTx OTDR
  Features:

  • Test dark fibers at up to three wavelengths
  • Test live FTTx fibers at 1625 nm
  • Measure splice, connection, and end-to-end loss
  • Measure connection reflectance
  • Measure FTTx downstream power levels at 1490 and 1550 nm
  • Troubleshoot splice trays, terminals, and patch panels using the VFL
  • Locate fiber ‘macro’ bends
  • Trace fibers up to 5 km using the VFL
  • Measure end-to-end loss using the OLS and OPM
  Applications:

  • Handheld, 0.8 kg (1.7 lb)
  • 1.3 m event dead zone
  • 30 dB (28 dB @ 1625 nm) dynamic range
  • FTTx construction model (OFL280-102) includes: 1310/1490/1550 nm
  • FTTx installation model (OFL280-103) includes: 1310/1550/1625 nm, PON power meter, Live fiber filter at 1625 nm
  • OPM, OLS, and VFL (650 nm)
  • Internal memory (> 1,000 trace files)
  • 3.5-inch, indoor/outdoor LCD display
  • 12-hour, rechargeable Li-Ion battery
  • USB port for PC connection

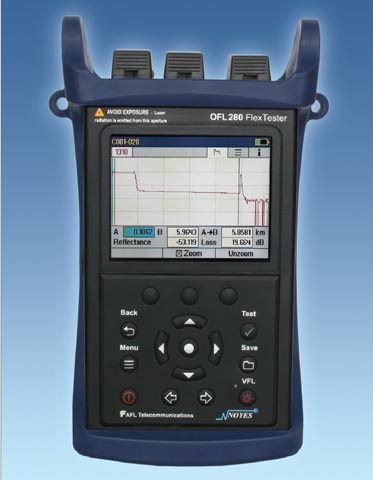

OFL280 FlexTester
  Features:

  • Rugged, handheld and light  weight
  • Standard OTDR, PON OTDR, live fiber OTDR, and FTTx PON meter all from the same test port
  • 0.8 m event dead zone, 3.5 m attenuation dead zone
  • 34 dB dynamic range
  • Fast Real Time OTDR mode
  • Internal storage (>1000 OTDR traces in standard .SOR format)
  • High-contrast display is clear and bright in any lighting condition, including direct sunlight
  • Transfer test results to a PC via USB
  • 10-hour operation, fast charge, Li-Ion battery
  • Short power-on time (< 5 sec)
  • Easy to use and learn
  Applications:

  • FTTx PON construction certification
  • Live Fiber OTDR - FTTx service turn-up and troubleshooting
  • Full Auto OTDR - Normal (point-to point) fiber cable construction testing and fault location
  • Expert OTDR - Full function OTDR for experienced users
  • Real Time OTDR - Fault location, splice verification, first connector checker
  • End Locator -Quickly locate breaks or measure fiber length
  • Optical Power Meter -Measure optical power or fiber loss
  • Laser Source - Measure end-to-end loss or trace fibers using the tone feature and a Noyes OFI
  • Visual Fault Locator - Red laser for fiber bend/break location and tracing
